Stone Extraction Basket (BB:Oval/BC:Spiral Type)-Gastro
- Convenient to inject contrast medium with injection port on handle
- Made by advanced alloyed materials, ensures good shape retention even after difficult stone removal

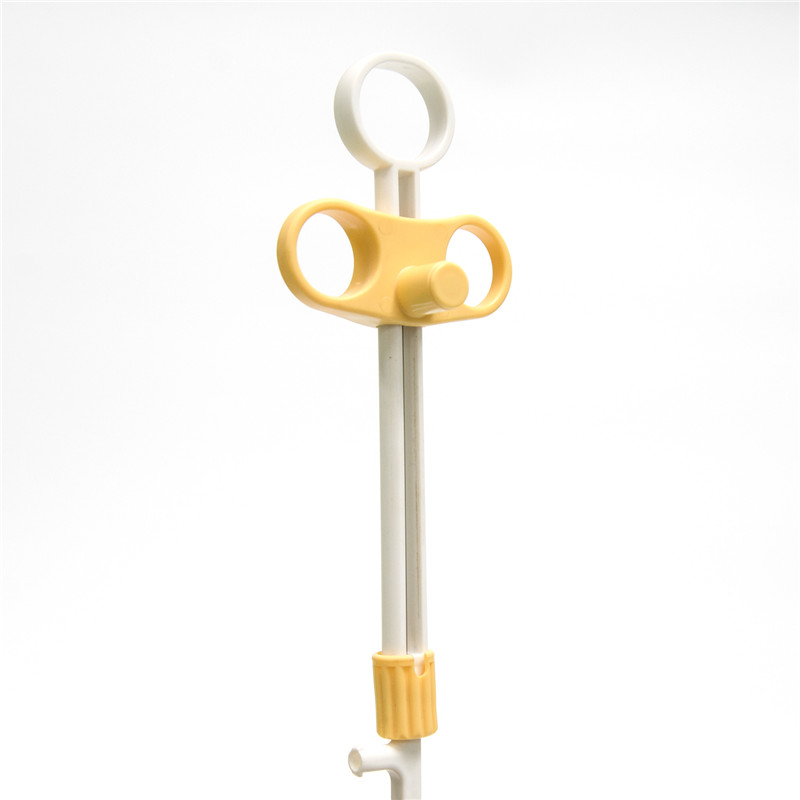

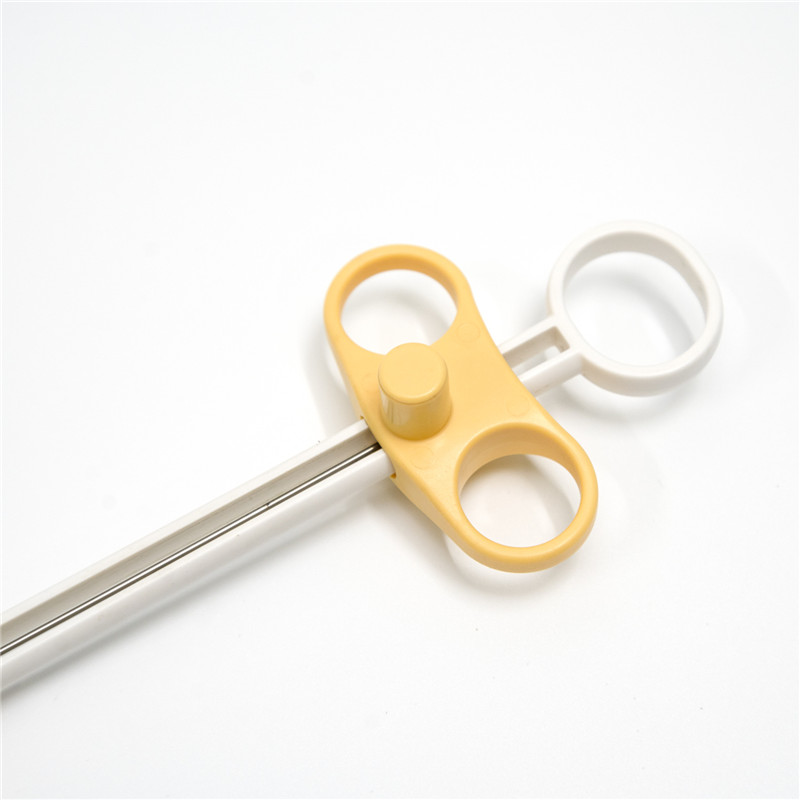

- Innovational handle design, with functions of push, pull and rotation, easier to grasp gallstone and foreign body.
- Accept customization, can meet different requirements.
| brand |
|---|
Description
Application
Remove gallstone in biliary duct and foreign bodies in digestive tract.
Specification
| Model | Basket Type | Basket Diameter(mm) | Basket Length(mm) | Working Length(mm) | Channel Size (mm) | Contrast Agent Injection |
| ZRH-BA | Diamond Type(A) | 15 | 30 | 700 | Φ1.9 | NO |
| ZRH-BA | 20 | 40 | 700 | Φ1.9 | NO | |
| ZRH-BA | 20 | 40 | 1600 | Φ2.5 | YES | |
| ZRH-BA | 30 | 60 | 1600 | Φ2.5 | YES | |
| ZRH-BA | 20 | 40 | 1900 | Φ2.5 | YES | |
| ZRH-BA | 30 | 60 | 1900 | Φ2.5 | YES | |

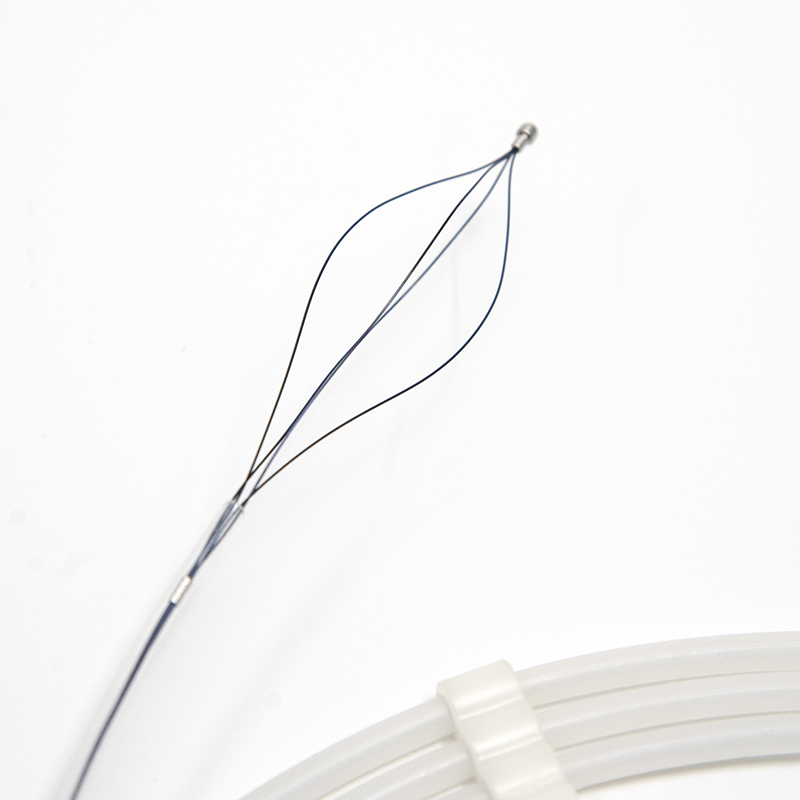

| ZRH-BB | Oval Type(B) | 15 | 30 | 700 | Φ1.9 | NO |
| ZRH-BB | 20 | 40 | 700 | Φ1.9 | NO | |
| ZRH-BB | 20 | 40 | 1600 | Φ2.5 | YES | |
| ZRH-BB | 30 | 60 | 1600 | Φ2.5 | YES | |
| ZRH-BB | 20 | 40 | 1900 | Φ2.5 | YES | |
| ZRH-BB | 30 | 60 | 1900 | Φ2.5 | YES | |

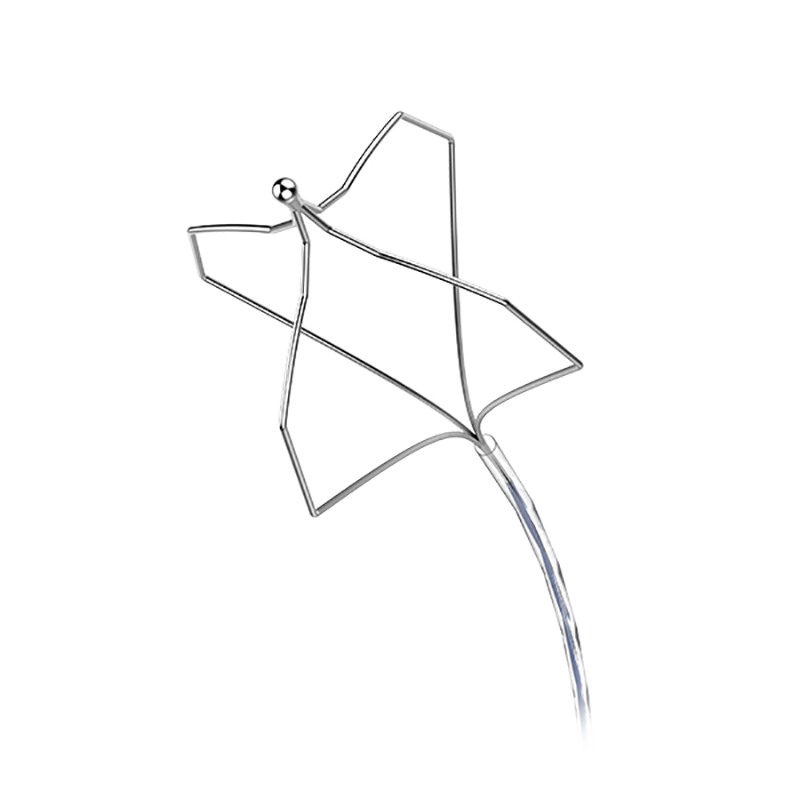

| ZRH-BC | Spiral Type(C) | 15 | 30 | 700 | Φ1.9 | NO |
| ZRH-BC | 20 | 40 | 700 | Φ1.9 | NO | |
| ZRH-BC | 20 | 40 | 1600 | Φ2.5 | YES | |
| ZRH-BC | 30 | 60 | 1600 | Φ2.5 | YES | |
| ZRH-BC | 20 | 40 | 1900 | Φ2.5 | YES | |
| ZRH-BC | 20 | 60 | 1900 | Φ2.5 | YES |
Products Description

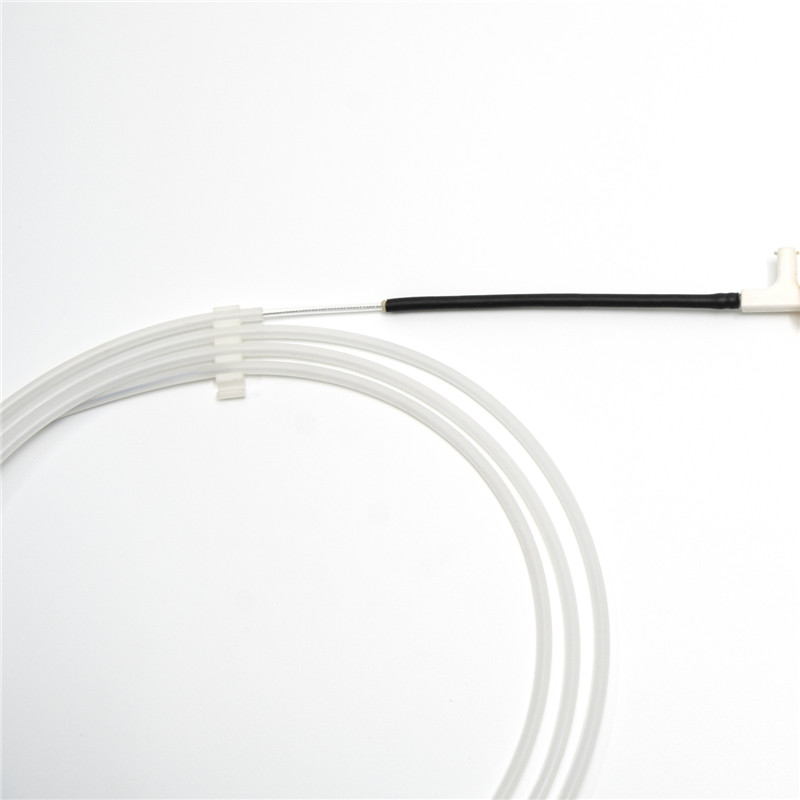

Super Smooth Sheath Tube
Protecting working channel, Simple Operation
Strong Basket
Excellent shape keeping
Unique Design of Tip
Effectively help to solve stone incarceration
ERCP method for removing common bile duct stones, the choice of stone extraction basket or balloon?
The methods of ERCP to remove common bile duct stones include two methods: balloon, basket, and some derived methods. With the development of technology, the choice of basket or balloon depends largely on the operator. Experience, preference, for example, stone extraction baskets are used as the first choice in Europe and Japan, because the stone extraction basket is stronger and has stronger traction than the balloon, but due to its structure, the stone extraction basket is not easy to grasp smaller stones, especially when the nipple incision is insufficient or the stones are larger than expected, the basket stone removal may cause stone incarceration. Considering these factors, the method of balloon stone removal may be more used in the United States.
Several studies have shown that the success rate of mesh basket and balloon stone removal methods is similar when the stone diameter is less than 1.1 cm, and there is no statistical difference in complications. When it is difficult to remove stones from the basket, the method of laser lithotripsy can be used to further solve the difficult stone removal. Therefore, in the actual operation, it is necessary to comprehensively consider the size of the stone, the experience of the operator and other factors, and choose a reasonable method of stone removal.
